TJ-2513H-Ultra and TJ-3220H-Ultra

No price
  • DETAILS

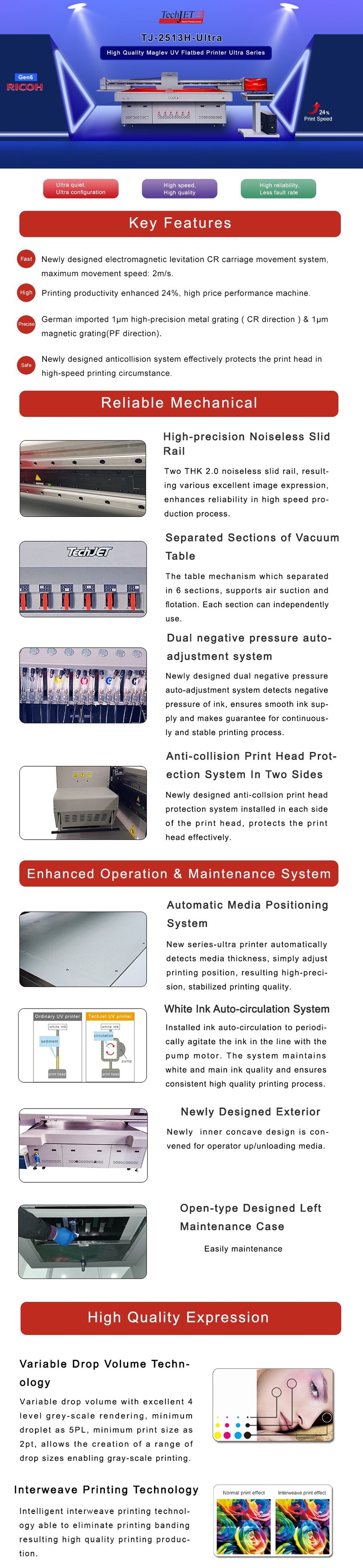

TJ-2513H-Ultra and TJ-3220H-Ultra 英文产品说明(1).jpgTJ-2513H-Ultra and TJ-3220H-Ultra 英文产品说明(2).jpg

▷ Technical Specifications
Model TJ-2513H-UltraTJ-3220H-Ultra
Print headRICOH Gen6 Industrial Printhead
Maximum print head quantity916
Row of print heads34
Supported inkTechJet RS-1000 / TechJet RA-1000
Colors range(CMYK),(CMYKLcLm), (CMYK+Wh),(CMYKLcLm+Wh),(CMYK+Wh+Va),(CMYKLcLm+Wh+Va)
Print resolution720x300dpi, 720x600dpi, 720x900dpi, 720x1200dpi
Printing speedSingle-row head printing speedDouble-rows head printing speedThree-rows head printing speedSingle-row head printing speedDouble-rows head printing speedThree-rows head printing speedFour-rows head printing speed
Quality of printingSpeed37.2㎡/h70.68㎡/h107.88㎡/h47.6㎡/h90.44㎡/h138.04㎡/h185.64㎡/h
Standard 15.5㎡/h29.45㎡/h44.95㎡/h19.8㎡/h37.62㎡/h57.42㎡/h77.22㎡/h
Quality 10.3㎡/h19.57㎡/h29.87㎡/h13.2㎡/h25.08㎡/h38.28㎡/h51.48㎡/h
Ultra 7.75㎡/h14.72㎡/h22.47㎡/h9.9㎡/h18.81㎡/h28.71㎡/h38.61㎡/h
Print Media Max.size2500×1300mm3200×2000mm
Max.thickness100mm
Max.weight50KG/㎡
RIP SoftwareONYX、PhotoPrint、Caldera(Optional)
Data interfaceUSB3.0
Ink supply methodVacuum negative pressure, continuous ink supply
Curing deviceDual UV-LED lamps
Printer weight1900KG2200KG
Dimension(W x D x H)4600mm×2200mm×1450mm5546mm×2935mm×1487mm
Power requirement AC220V±10%,≥32A,50/60HZ
Max/Min. power7000W / 5000W
Printable environment Temperature 20-30 °C, humidity 40%-60%RH(non condensing)
The above printing speed is the measured printing speed
