Home >> Products >>Flatbed UV Printers >> 2513H-Pro Flatbed UV Printer
Product Detail

2513H-Pro Flatbed UV Printer

  • Details
  • Specification


Ricoh G6 PrintHead

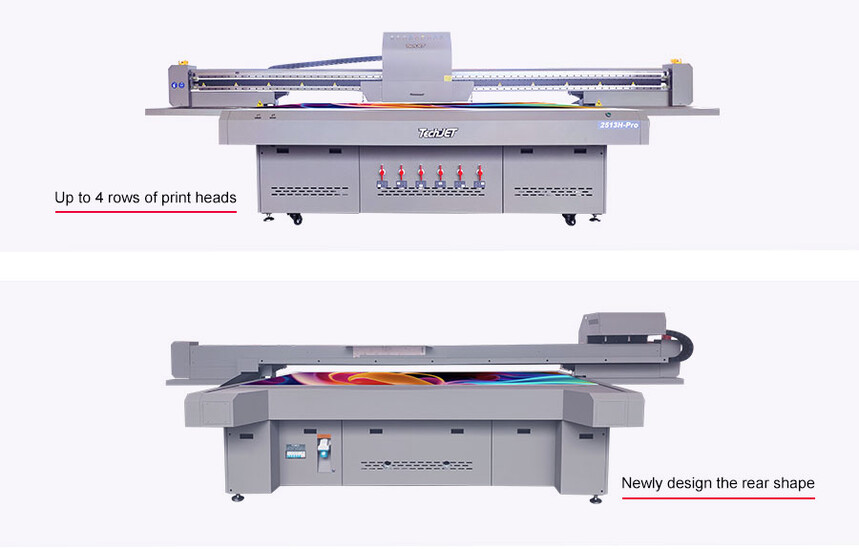

Maximum 4 rows of printheads can be loaded.                                                             Printhead protection function

Negative ink supply function                                                                                          High precision optical grating

Air suction and flotation function                                                                                    White ink circulation function

Easy open maintenance door convenience for operation                                              Media positioning function




Model2513H-Pro2513K-Pro
Carriage moving Linear Motor
Print headRicoh G6 / G5Konica Minolta 1024a
Basic and Max number of printheads3--125--20
Maximum printheads number1220
Max Row of printheads43
Used ink RA-1000
Colors range4 Colorsx4=CMYKx44 Colorsx4=CMYKx4
6 Colorsx4=CMYKLcLmx46 Colorsx4=CMYKLcLmx4

4 ColorsX2 +Whitex2=CMYK+WhiteX2+CMYK

4 ColorsX2 +Whitex2=CMYK+WhiteX2+CMYK

6 Colorsx2+Whitex2=CMYKLcLm+whiteX2+CMYKLcLm

6 Colorsx2+Whitex2=CMYKLcLm+whiteX2+CMYKLcLm

4 Colorsx2+White+Varnish4 Colorsx2+White+Varnish
6 ColorsX2+White+Varnish6 ColorsX2+White+Varnish
Print modePrint resolutionFour rows printhead printing speedPrint resolutionThree rows printhead printing speed
Draft Mode4Pass-726×600109.3㎡/h4Pass-726×720101.7㎡/h
Standard mode4Pass-726×60053.9㎡/h4Pass-726×72049.7㎡/h
Quality Mode6Pass-726×90036.6㎡/h6Pass-726×108033.9㎡/h
High quality mode8Pass-726×120027.6㎡/h8Pass-726×144025.4㎡/h
Print MediaMax Print sizeUp to 2500×1300mm(8.2Feet by 4.3Feet)
ThicknessUp to 100mm
Max.weight50Kg/㎡
RIP SoftwareONYX、PhotoPrint、Caldera(Optional)
Data interfaceUSB3.0
Ink supply methodVacuum negative pressure, continuous ink supply
Curing MethodDual UV-LED Lampes
Printer weight1300KG
Dimension (W x D x H)4530mm×2200mm×11560mm
Power requirementAC220V±10%,≥32A,50/60HZ
Maximum power7000W
Printable environmentTemperature 20-30 °C, humidity 40%-60%RH (non condensing)

Remark

*The above printing speed is the measured printing speed.

*The power consuption basicis on standby and normal print.

*The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
