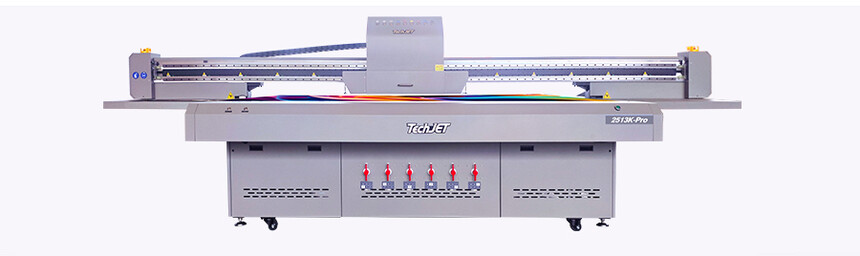

2513K-Pro Flatbed UV Printer

  • Details
  • Specification


Konica Minolta 1024a PrintHead



Loaded brand new printhead of Konica Minolta 1024a up to 20pcs with 3 rows the minimum droplet size as 6PL.

Fully automatic medium thickness detection function and automatic printing height control system.

Controllable design of the vacuum area, according to the size of the media to controlling the vacuum area to ensure stable vacuum output.

Equipped with a brand-new collision avoidance system effectively protects the printheads even during high-speed printing.




Model2513H-Pro2513K-Pro
Carriage moving Linear Motor
Print headRicoh G6 / G5Konica Minolta 1024a
Basic and Max number of printheads3--125--20
Maximum printheads number1220
Max Row of printheads43
Used ink RA-1000
Colors range4 Colorsx4=CMYKx44 Colorsx4=CMYKx4
6 Colorsx4=CMYKLcLmx46 Colorsx4=CMYKLcLmx4

4 ColorsX2 +Whitex2=CMYK+WhiteX2+CMYK

4 ColorsX2 +Whitex2=CMYK+WhiteX2+CMYK

6 Colorsx2+Whitex2=CMYKLcLm+whiteX2+CMYKLcLm

6 Colorsx2+Whitex2=CMYKLcLm+whiteX2+CMYKLcLm

4 Colorsx2+White+Varnish4 Colorsx2+White+Varnish
6 ColorsX2+White+Varnish6 ColorsX2+White+Varnish
Print modePrint resolutionFour rows printhead printing speedPrint resolutionThree rows printhead printing speed
Draft Mode4Pass-726×600109.3㎡/h4Pass-726×720101.7㎡/h
Standard mode4Pass-726×60053.9㎡/h4Pass-726×72049.7㎡/h
Quality Mode6Pass-726×90036.6㎡/h6Pass-726×108033.9㎡/h
High quality mode8Pass-726×120027.6㎡/h8Pass-726×144025.4㎡/h
Print MediaMax Print sizeUp to 2500×1300mm(8.2Feet by 4.3Feet)
ThicknessUp to 100mm
Max.weight50Kg/㎡
RIP SoftwareONYX、PhotoPrint、Caldera(Optional)
Data interfaceUSB3.0
Ink supply methodVacuum negative pressure, continuous ink supply
Curing MethodDual UV-LED Lampes
Printer weight1300KG
Dimension (W x D x H)4530mm×2200mm×11560mm
Power requirementAC220V±10%,≥32A,50/60HZ
Maximum power7000W
Printable environmentTemperature 20-30 °C, humidity 40%-60%RH (non condensing)

Remark

*The above printing speed is the measured printing speed.

*The power consuption basicis on standby and normal print.

*The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
