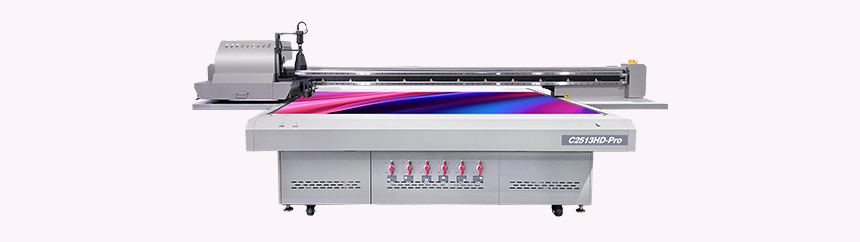

C2513HD-Pro Flatbed UV Printer

  • Details
  • Specification


Ricoh G6 PrintHead



Intelligent recognition and positioning have significantly enhanced production efficiency.



The bidirectional nozzle anti-collision design ensures the safe and stable output of the printer.



Under the condition of the same printing height, images and materials are automatically matched, eliminating the need for layout.



A 1200DPI high-precision vision camera with an automatic matching accuracy of up to 0.1mm.




ModelC2513HD-Pro
High resolution CCD1200DPI
Print headRICOH Series Industrial Printheads
Basic number of Printhead3
Maximum printhead Number12
Row of print heads4
Supported inkRS-1000 / RA-1000
Colors range4 Colorsx4=CMYKx4
6 Colorsx4=CMYKLcLmx4
4 Colorsx3 +White=CMYKx3+White
6 Colorsx3+White=CMYKLcLmx3+white
4 Colorsx2+White+Varnish
6 Colorsx2+White+Varnish
Print modePrint resolutionDouble-row head printing speedThree-rows head printing speedFour-rows head printing speed
Speed4Pass-726×60067.6㎡/h89.3㎡/h109.3㎡/h
Standard4Pass-726×60031.2㎡/h43.8㎡/h53.9㎡/h
Quality6Pass-726×90020.6㎡/h29.3㎡/h36.6㎡/h
Ultra8Pass-726×120015.6㎡/h22㎡/h27.6㎡/h
Print MediaMax.size2500×1300mm
Max.thickness100mm
Max.weight50KG/㎡
RIP SoftwareONYX、PhotoPrint、Caldera(Optional)
Data interfaceUSB3.0
Ink supply methodVacuum negative pressure, continuous ink supply
Curing deviceDual UV-LED lamps
Printer weight1300KG
Dimension(W x D x H)4530mm×2200mm×1560mm
Power requirementAC220V±10%,≥32A,50/60HZ
Max/Min. power7000W / 5000W
Printable environmentTemperature 20-30 °C, humidity 40%-60%RH(non condensing)


Remark

*The above printing speed is the measured printing speed.

*The power consuption basicis on standby and normal print.

*The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.


Shanghai CoStraight Digital technology.,LTD is an enterprise specializing in large-format UV printers, the manufacture located is Shanghai Jiading District FengHua Boulevard Industries park.
