3300KR-EX

3.3 meters large format high quality high speed roll to roll UV printer

3300KR-EX

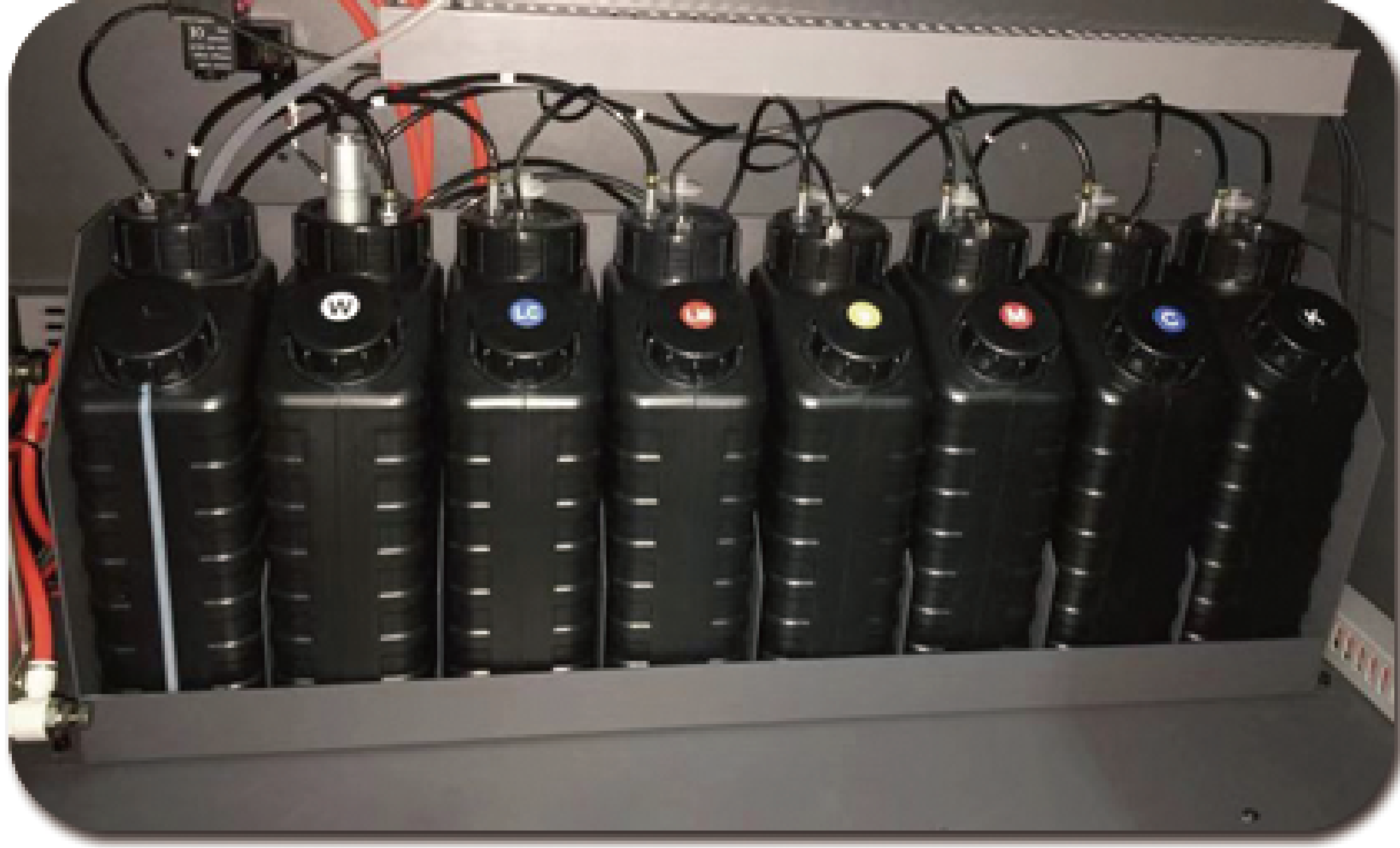

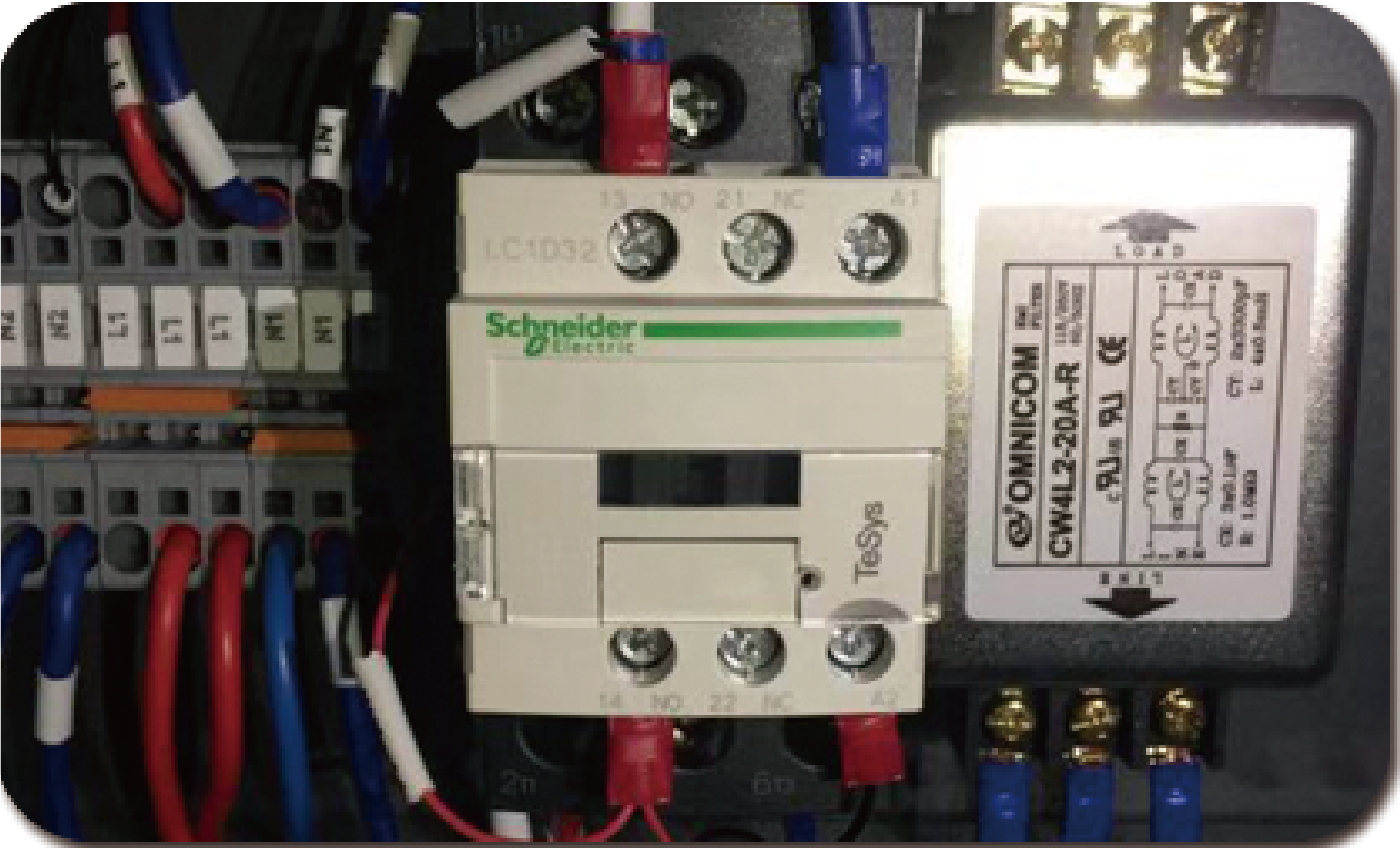

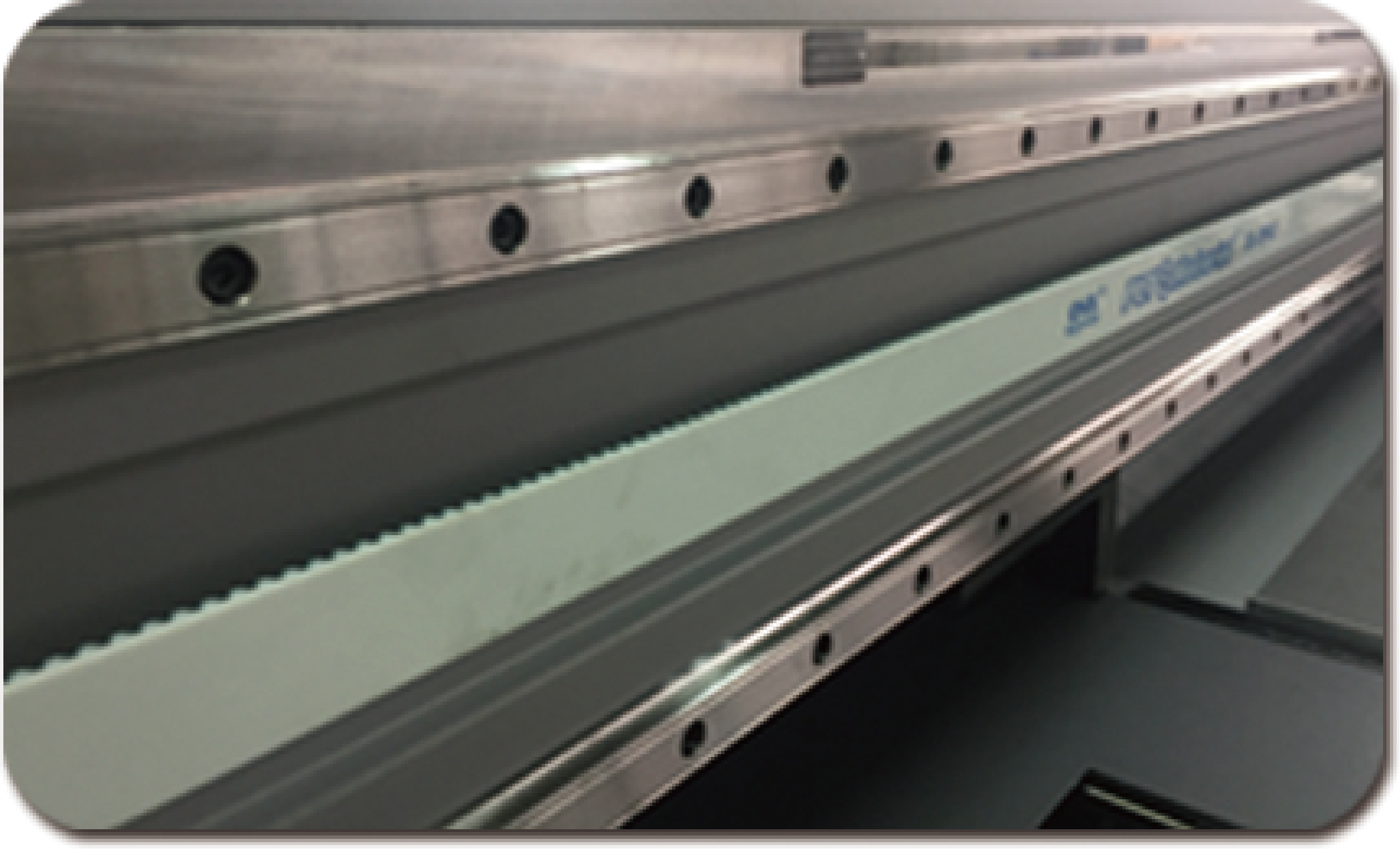

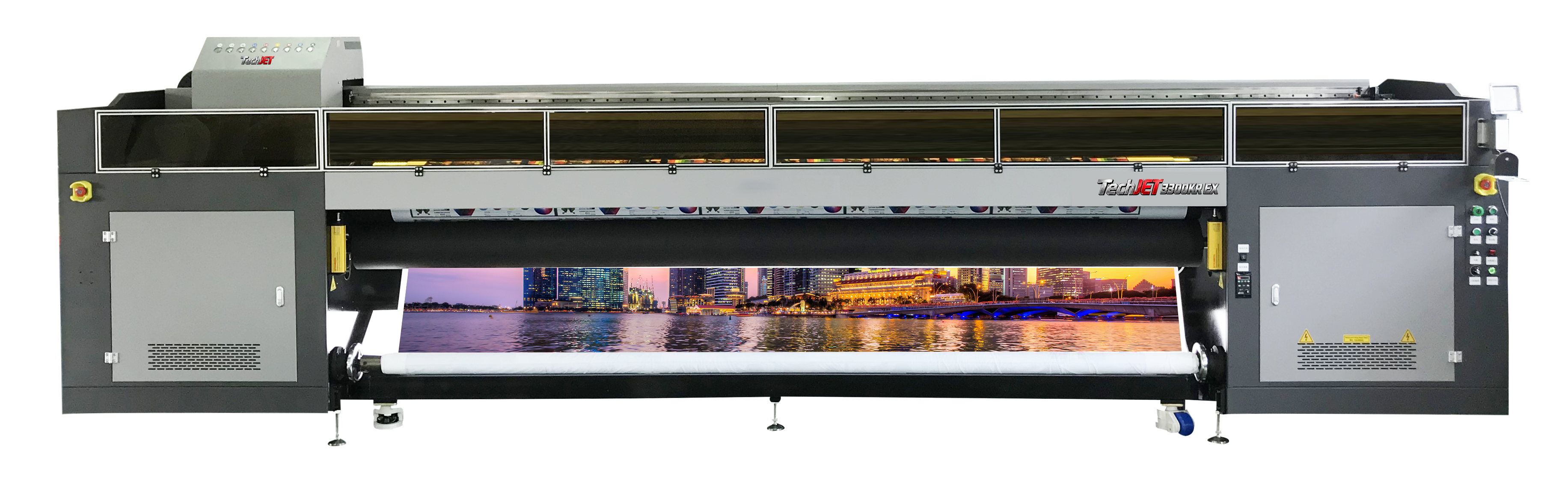

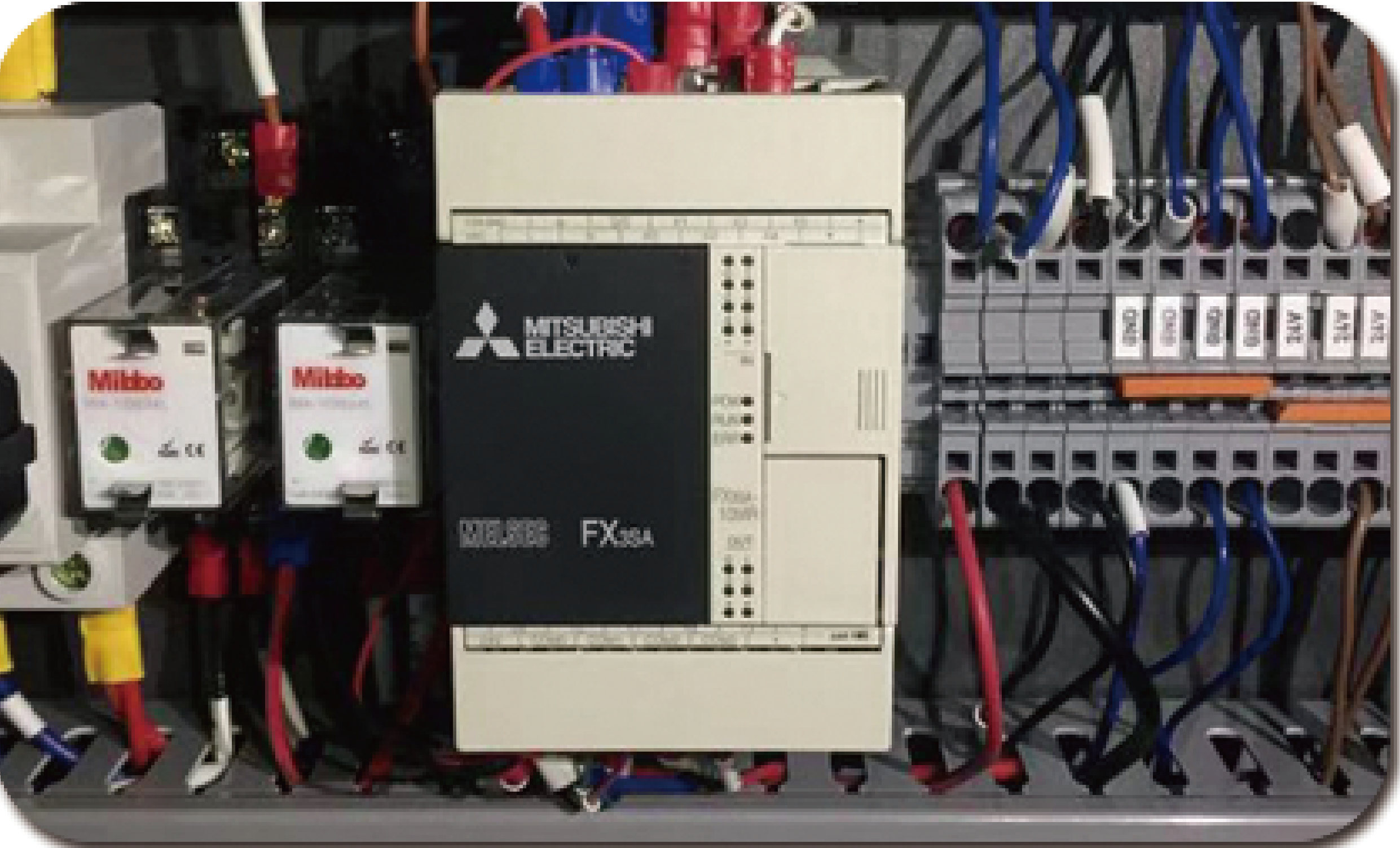

3300KR/EX High-Speed UV Roll-to-Roll Printer It features an extra-wide 3.3-meter print width, equipped with silent THK linear guides from Japan and 1μm metal grating from Germany for precise positioning and low noise. Adopting industrial electrical control components: Mitsubishi PLC, OMRON relays and Schneider contactors. It is fitted with a 2.5L main ink tank (with white ink stirring function + 0.2μm filtration) and 140ml secondary ink cartridges, supporting automatic ink supply with dual negative pressure. High speed & superior print quality, wide compatibility, stable performance and low failure rate.

A wide field applications

Decoration painting

Stretch Ceiling

Airport Advertising

Outdoor large format advertising

Large billboard

Lightbox

Get a quote

Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.

Phone

Content *

Main Performance

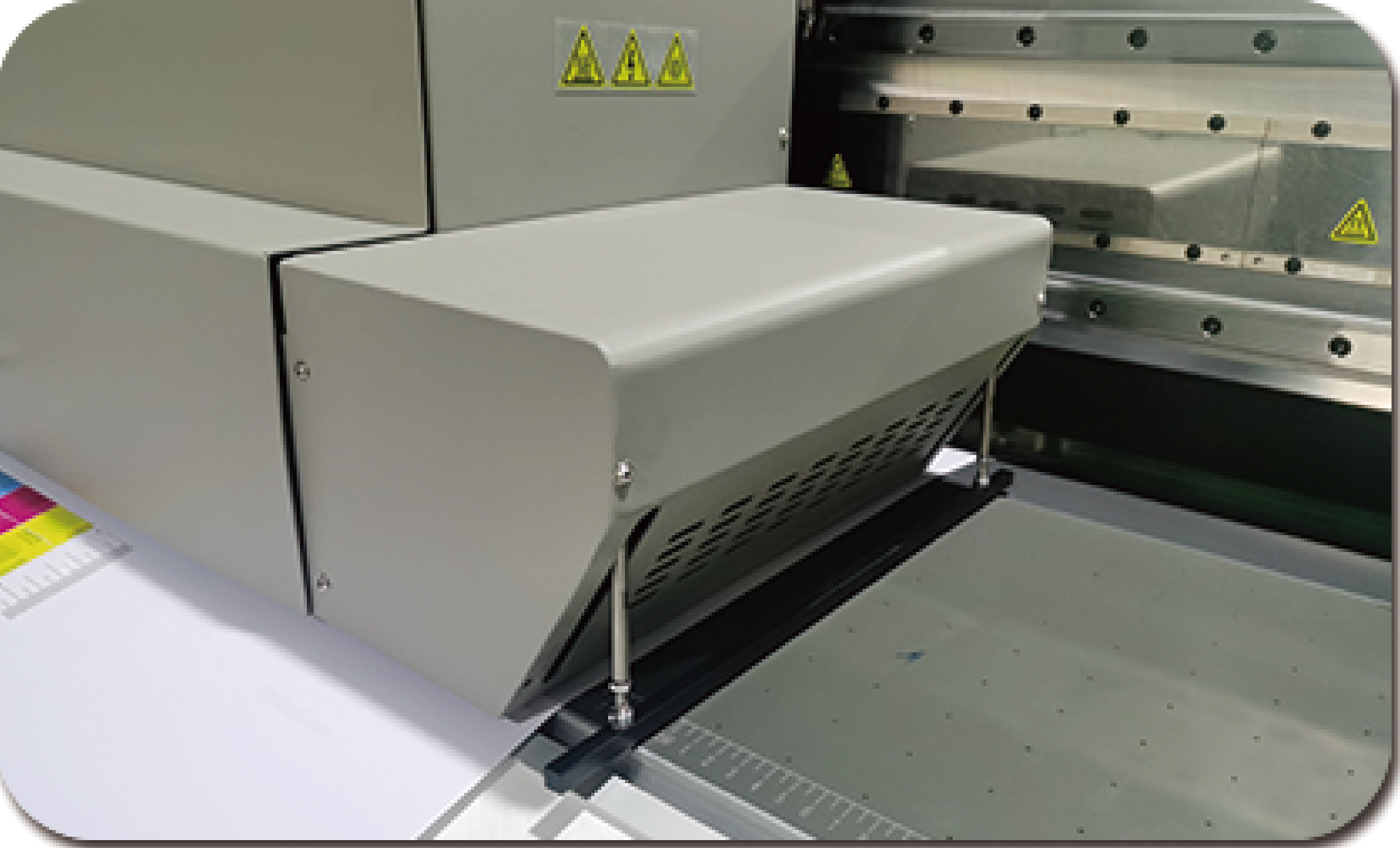

Configure safety gratings to ensure the safety of operators

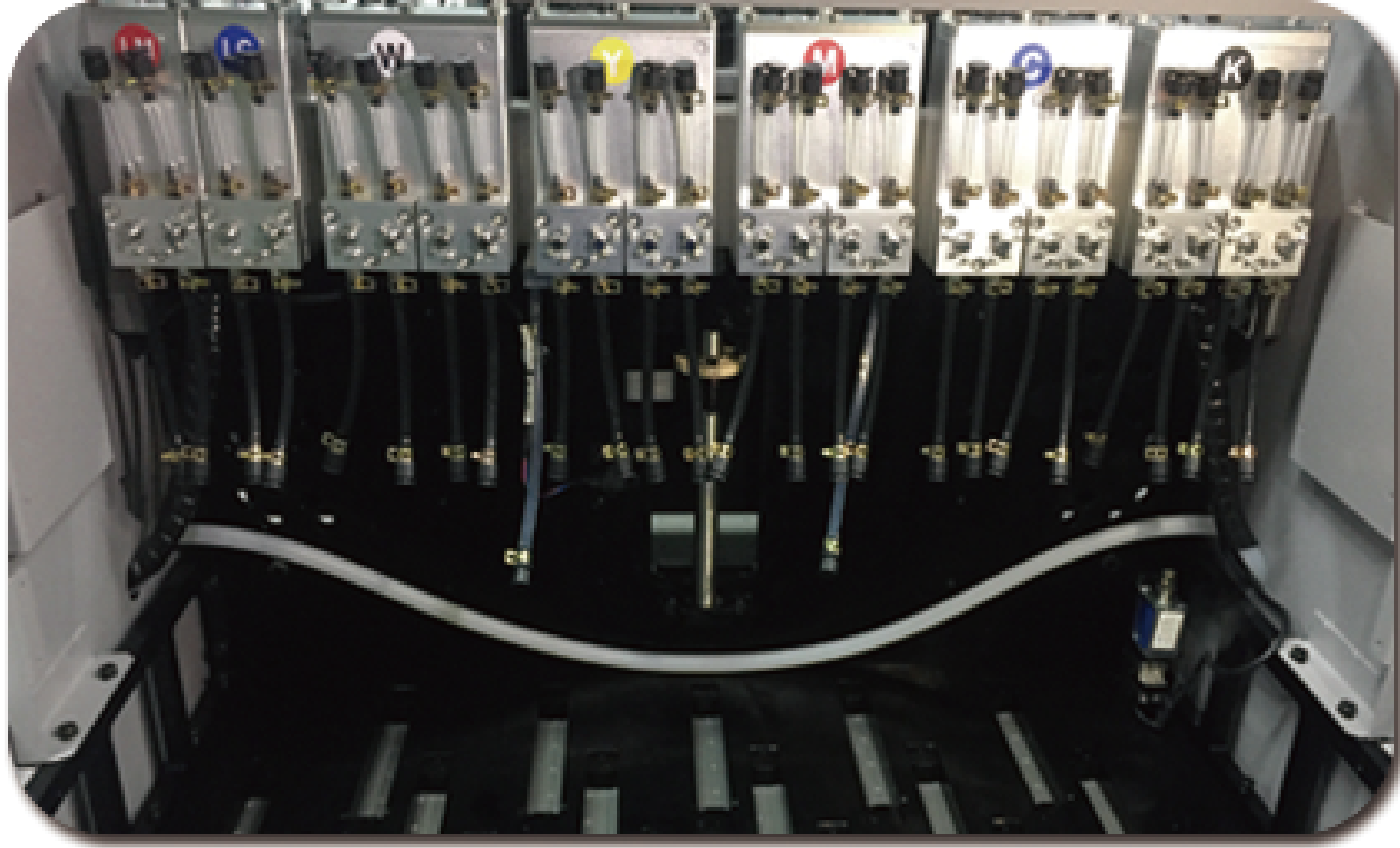

Automatic negative pressure adjustment system continuously provides stable pressure to ensuringthe stability of the ink supply.

Intelligent lacking ink voice alarm, ensuring printing process safer and more reliable.

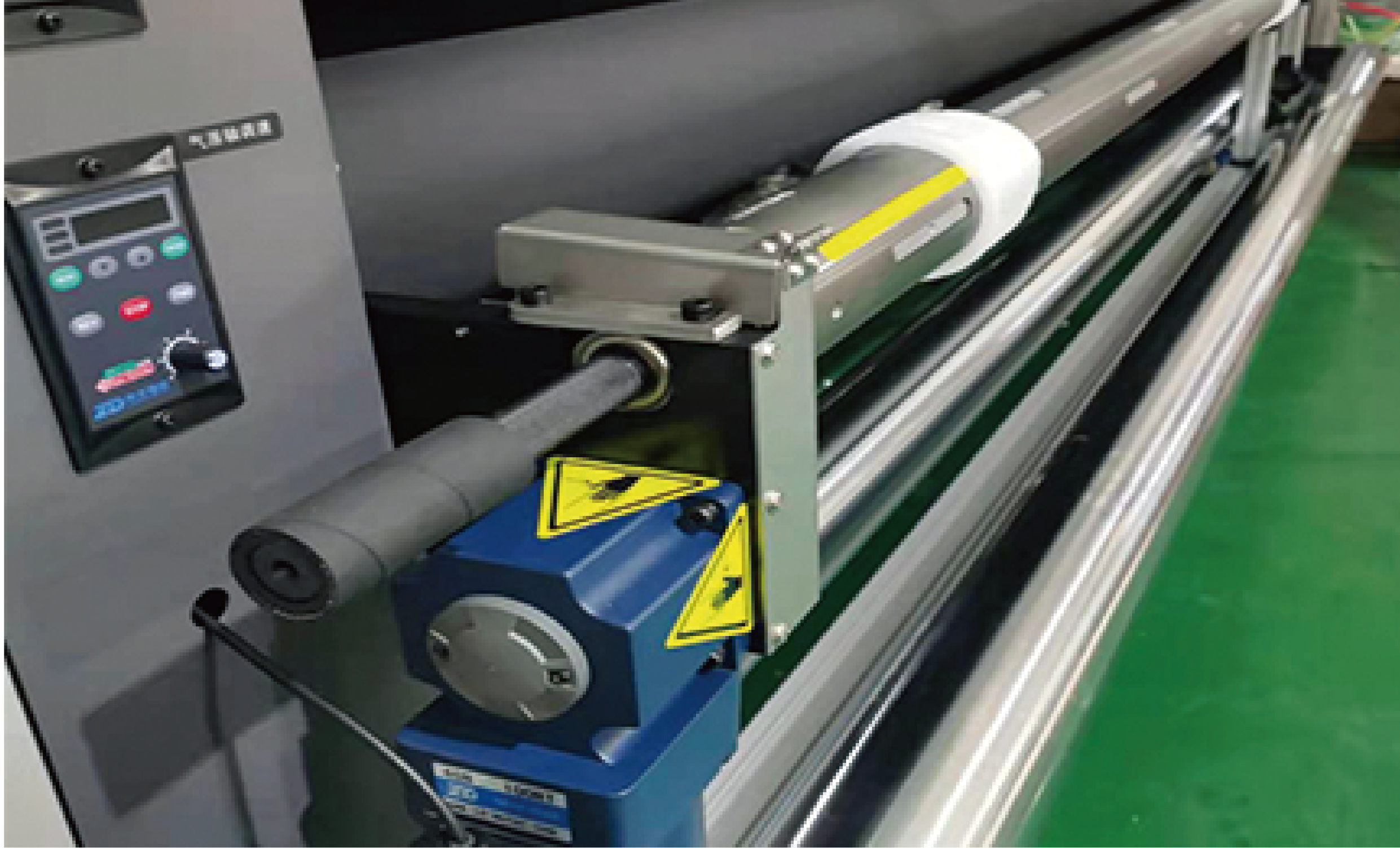

Tension feeding and discharging system, ensure media feeding stable without wrinkle.

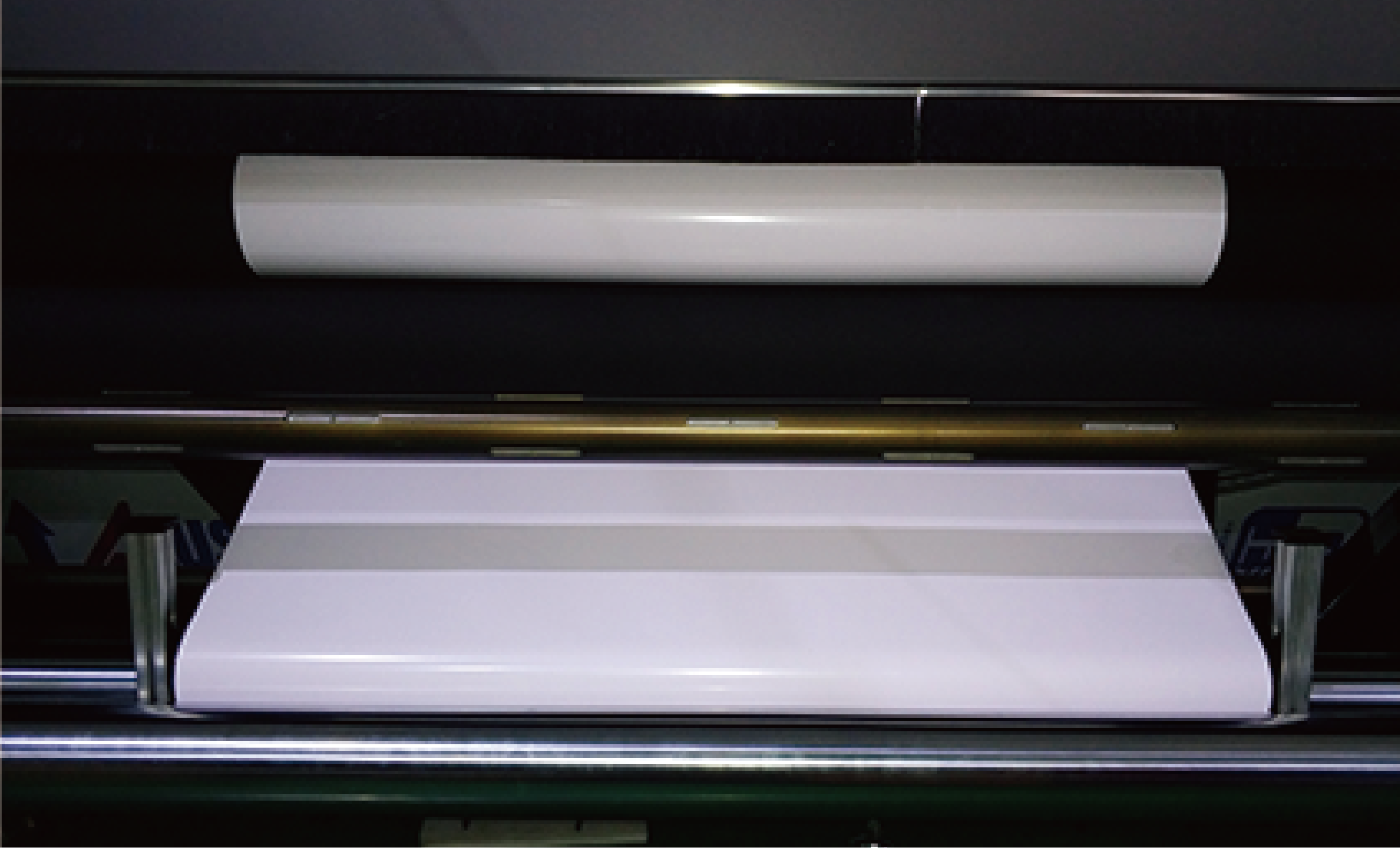

Using four diameter of 192mm rubber rollers to grip material movement and standard configurationof front and rear air shafts.

Specifications

Model		3300KR/EX
Carriage moving approach		Belt
Print head		Konica Minolta1024a /6988H
Basic and max number of printheads		4-20
Maximum printheads number		16
Max row of printheads		3
Used ink		TechJet F2-1000
colors range		4 Colorsx3=CMYKx3
		6 Colorsx3=CMYKLcLmx3
		4 Colorsx2 +White =CMYKx2+White
		6 Colorsx2+White =CMYKLcLmx2+white
		4 Colors +White+Varnish
		6 Colors +White+Varnish
Print mode	Print resolution	Single-row head printing speed	Double-rows head printing speed	Triple-rows head printing speed
Draft Mode	4Pass-726×720	40㎡/h	76㎡/h	117㎡/h
Standard mode	4Pass-726×720	19㎡/h	37㎡/h	56㎡/h
Quality Mode	6Pass-726×1080	13㎡/h	25㎡/h	38㎡/h
High quality mode	8Pass-726×1440	10㎡/h	18㎡/h	28㎡/h
Print Media	Max Print size	Up to 3300mm
	Thickness	Up to2mm
	Max.weight	120kg
RIP Software		ONYx、 PhotoPrint、Caldera (Optional)
Data interface		USB3.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Dimension(W x D x H)		5650mmx1300mmx1650mm
Printer weight		2700kg
Power requirement		AC220V10%,32A, 50/60HZ
Maximum power		6000W
interface		Temperature 20-30C, humidity 40%-60%RH(non condensing)
Remark The above printing speed is the measured printing speed. The power consuption basicis on standby and normal print. *The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
