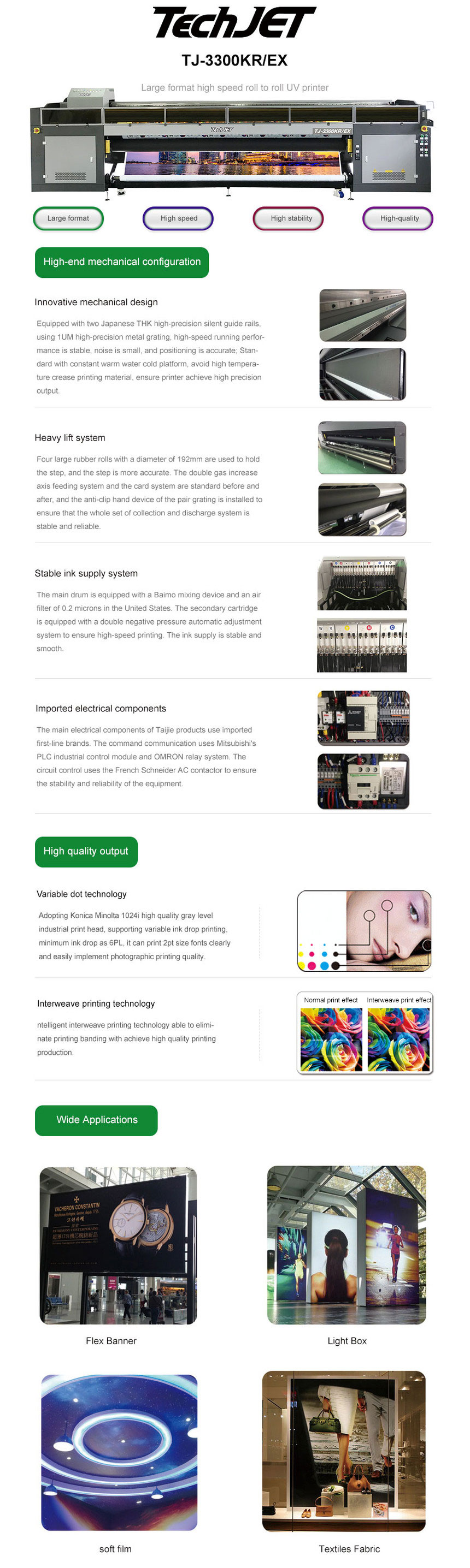

3300KR/EX Roll to Roll UV Printer

Details
Specifications

Konica Minolta 1024a PrintHead MSRP：65,995.00 USD

•Using four diameter of 192mm rubber rollers to grip material movement and standard configuration of front and rear air shafts.

•Tension feeding and discharging system，ensure media feeding stable without wrinkle.

•Automatic negative pressure adjustment system continuously provides stable pressure to ensuring the stability of the ink supply.

•Intelligent lacking ink voice alarm, ensuring printing process safer and more reliable.

•Configure safety gratings to ensure the safety of operators.

Model		3300KR/EX
Carriage moving approach		Belt
Print head		Konica Minolta 1024a / 6988H
Basic and max number of printheads		4--22
Maximum printheads number		22
Max row of printheads		3
Used ink		TechJet F2-1000
Colors range		4 Colorsx3=CMYKx3
		6 Colorsx3=CMYKLcLmx3
		4 Colorsx2 +White =CMYKx2+White
		6 Colorsx2+White =CMYKLcLmx2+white
		4 Colors +White+Varnish
		6 Colors +White+Varnish
Print mode	Print resolution	One row printhead printing speed	Two rows printhead printing speed	Three rows printhead printing speed
Draft Mode	4Pass-726×720	40㎡/h	76㎡/h	117㎡/h
Standard mode	4Pass-726×720	19㎡/h	37㎡/h	56㎡/h
Quality Mode	6Pass-726×1080	13㎡/h	25㎡/h	38㎡/h
High quality mode	8Pass-726×1440	10㎡/h	18㎡/h	28㎡/h
Print Media	Max Print size	Up to 3300mm
	Thickness	Up to 2mm
	Max.weight	120kg
RIP Software		ONYX、PhotoPrint、Caldera（Optional）
Data interface		USB3.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Gross weight		2700kg
Dimension (W x D x H)		5650mmx1300mmx1650mm
Power requirement		AC220V±10%，≥32A，50/60HZ
Maximum power		6000W
Printable environment		Temperature 20-30 °C, humidity 40%-60%RH (non condensing)
Remark The above printing speed is the measured printing speed. The power consuption basicis on standby and normal print. *The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
