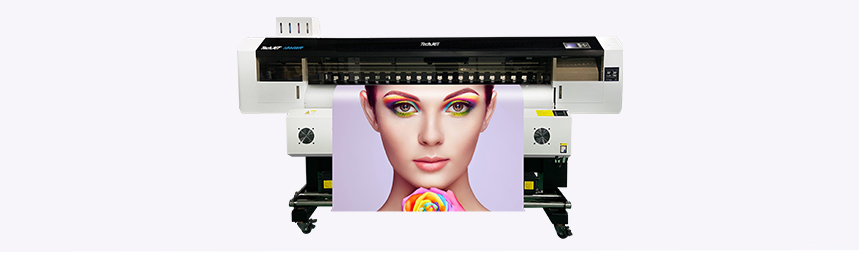

The TechJet-1844WR 75-inch water-based printer is equipped with staggered dual latest micro piezoelectric printheads that provide fast print speeds. it’s capable of producing smooth gradations while delivering high quality printing, even with reduced resolutions. built for professionals.

• Three element heater in rear media and front, the temperature can be adjustment up to 50 degree ensure the ink has been dryer before the take up media.

• Electronic pump effectively kept all the nozzle in best status achieve the long life of printhead reduce the cost of daily or usually maintenance.

• Newly designed electromagnetic wiper function, improvement the cleaning effect ensure printhead surface no ink residual.

• High precision with reasonable power servo motor of cr direction equipped, kept the stability low noise achieved high resolution printing.

• High precision with low noise rail equipped, the stability and accuracy of the carriage are ensured achievement high precision output.

• Internal led lighting for unobstructed print viewing and maintenance access.

• For printing materials of different thicknesses, the height of printhead is available to adjustment from 1mm up to 4mm , prevent print head damage caused by uneven printing media.

• Application variable dot print technology effectively control in dot size achievement the color gamut and color transition.

• Intelligent interweaving technology application able to effective eliminated banding especially when printed solid colors.

• Bi-direction adjustment function realize high precision when used dual head.

• Feed adjustment function , ensure same precision even use different thickness the media.

• Dual direction anti-collision function effectively protected printhead.

Model		TJ-1844WR
Print head	Print head type	Micro piezo print head
	Number of printhead	4
	Print resolution	720×1200dpi、720×1800dpi、720×2400dpi
	Print head protection	Automatic cleaning, automatic inkjet moisture function
Printing speed	4PASS 720×1200dpi（Speed）	76.8 ㎡/h
	6PASS 720×1800dpi（Standard）	51㎡/h
	8PASS 720×2400dpi（Quality）	38.4㎡/h
Ink	Type	Water-Based dye ink
	color range	C M Y K
	Model	TW11-1000，Package of 1000ml each
Maximum print size		1800mm
Media		PP self-adhesive sticker, Photographic paper, Silk cloth
Media type		Roll media
RIP software		Maintop
Supported image formats		JPG、TIF、BMP、PDF
Computer Configuration	Operating System	Win7、Win10
	Hardware Requirements	Hard disk: 500G or more, Graphics: ATI Solo, RAM：8G , Optical drive: DVD optical drive, inter core i5
	Interface	Network Interface
Standard		Front, middle and rear three built-in heating + external dryer, media take up, Maintop RIP
Printable environment		Humidity: 40%－60%（non condensing），Temperature∶15℃～35℃
Power		220V 50/60HZ 10A
Machine Size（W×D×H）		3018×853×1538mm
Package Size（W×D×H）		3190×1010×1020mm
Package Size		Net weight：350KG Gross weight：510KG
The specification are subject to change without notice
