Product Detail

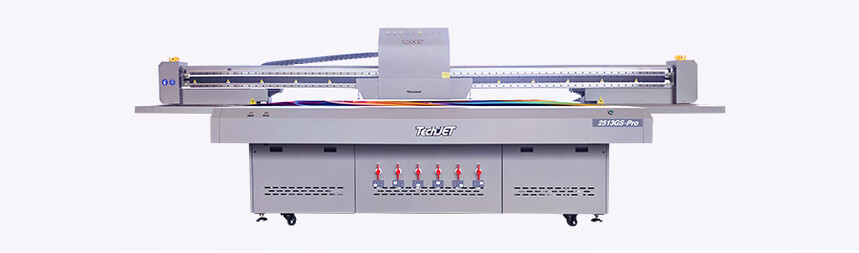

2513Gs Flatbed UV Printer

Details
Specifications

Ricoh G5s PrintHead MSRP：49,995.00 USD

•Used G5s printhead with colours inks and G5 white inks for achievement colours high precision and high white ink saturation.

•Recommend using CMYK LC LM +W 7 color or CMYK LC LM +W+V further meet professional printing needs.

•Equipped with a brand-new collision avoidance system, effectively protects the print head even during high-speed printing.

Model		2513Gs
Carriage moving approach		Belt
Print head		Ricoh G5s
Basic and Max number of printheads		3--9
Maximum printheads number		9
Max Row of printheads		3
Used ink		TechJet RA-1000
Colors range		4 Colorsx3=CMYKX3
		6 Colorsx3=CMYKLcLmx3
		4 Colorsx2 +White=CMYKx2+White
		6 Colorsx2+White=CMYKLcLmx2+white
		4 Colors+White+Varnish
		6 Colors+White+Varnish
Print mode	Print resolution	One row printhead printing speed	Two rows printhead printing speed	Three rows printhead printing speed
Draft Mode	4Pass-726×600	22.7㎡/h	43.13㎡/h	65.83㎡/h
Standard mode	4Pass-726×600	9.5㎡/h	18.05㎡/h	27.55㎡/h
Quality Mode	6Pass-726×900	6.3㎡/h	11.97㎡/h	18.27㎡/h
High quality mode	8Pass-726×1200	4.75㎡/h	9.02㎡/h	13.77㎡/h
Print Media	Max Print size	Up to 2500×1300mm(8.2Fx4.3F)
	Thickness	Up to 100mm
	Max.weight	50Kg/㎡
RIP Software		ONYX、PhotoPrint、Caldera（Optional）
Data interface		USB3.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Gross weight		1700KG
Dimension (W x D x H)		4600mm×2200mm×1450mm
Power requirement		AC220V±10%，≥32A，50/60HZ
Maximum power		7000W
Printable environment		Temperature 20-30 °C, humidity 40%-60%RH (non condensing)
Remark The above printing speed is the measured printing speed. The power consuption basicis on standby and normal print. *The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
