Home >> Products >>Versatility Printers >> 2500VersaUV Printer

Products

Versatility Printers

Flatbed UV Printers

Roll to Roll UV Printers

Water-Based and Eco-Solvent printers

UV Inks

Water-Based and Eco-Solvent inks

Product Detail

2500VersaUV Printer

Details
Specifications

RICOH G6 PrintHead MSRP：53,995.00 USD

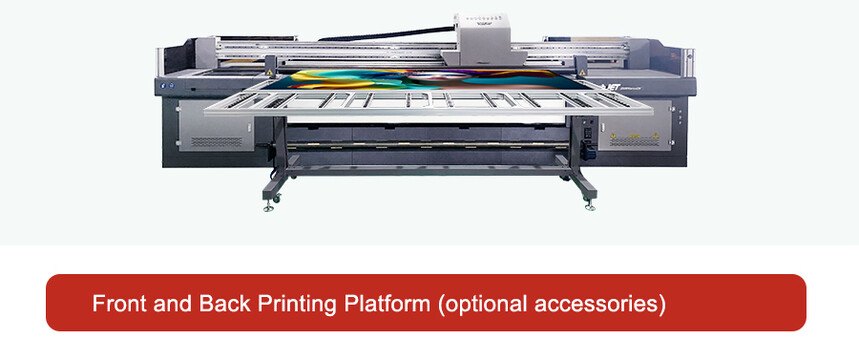

The front and back extending platforms are optional parts that can be quickly assembled and disassembled, it enables the printer to print both roll and board media.

•Widely used in advertising production and other fields.

•Using a high torque and high-precision reducer to drive the mesh belt, combined with vacuum table, to ensure the stability and flatness of media movement.

•Tension feeding and discharging system，ensure media feeding stable without wrinkle.

•Automatic negative pressure adjustment system continuously provides stable pressure to ensuring the stability of the ink supply.

•Intelligent lacking ink voice alarm, ensuring printing process safer and more reliable.

Model		2500VersaUV
Carriage moving approach		Belt
Print head		Ricoh G6
Basic and max number of printheads		3--9
Maximum printheads number		9
Max row of printheads		3
Used ink		TechJet F2-1000
Colors range		4 Colorsx3=CMYKx3
		6 Colorsx3=CMYKLcLmx3
		4 Colorsx2 +White =CMYKx2+White
		6 Colorsx2+White =CMYKLcLmx2+white
		4 Colors +White+Varnish
		6 Colors +White+Varnish
Print mode	Print resolution	Two rows printhead printing speed	Color white printing speed		Color white color printing speed (Three-rows printheads)
Draft Mode	4Pass-726×600	56.25㎡/h	56.25㎡/h		28.12㎡/h
Standard mode	4Pass-726×600	28.71㎡/h	28.71㎡/h		14.35㎡/h
Quality Mode	6Pass-726×900	19.91㎡/h	19.91㎡/h		9.95㎡/h
High quality mode	8Pass-726×1200	14.79㎡/h	14.79㎡/h		7.39㎡/h
Print Media	Media	Roll media		Flat media
	Max Print size	Up to 2500mm(8.2F)		Up to 2500×1300mm(8.2Fx4.3F)
	Thickness	Up to 1.5mm		Up to 30mm
RIP Software		ONYX、PhotoPrint、Caldera（Optional）
Data interface		USB3.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Gross weight		1700kg
Dimension (W x D x H)		4680mm×1260mm×1450mm
Front and back printing platform（optional accessories）		2750mm×565mm
Power requirement		AC220V±10%，≥32A，50/60HZ
Maximum power		6000W
Printable environment		Temperature 20-30 °C, humidity 40%-60%RH (non condensing)
Remark The above printing speed is the measured printing speed. The power consuption basicis on standby and normal print. *The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
