Product Detail

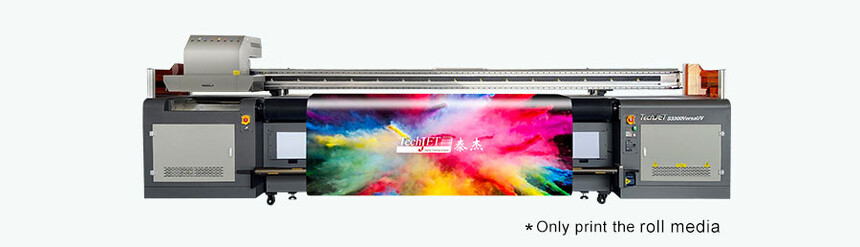

S3300VersaUV Printer

Details
Specifications

Konica Minolta 1024a PrintHead MSRP：64,995.00 USD

•Loading Konica Minolta 1024a printhead with special developed UV inks, efficiently raise print speed and also quality.

•Widely used in advertising production and other fields.

•Using a high torque and high-precision reducer to drive the mesh belt, combined with vacuum table, to ensure the stability and flatness of media movement.

•Automatic negative pressure adjustment system continuously provides stable pressure to ensuring the stability of the ink supply.

•Intelligent lacking ink voice alarm, ensuring printing process safer and more reliable.

Model		S3300VersaUV
Carriage moving approach		Linear Motor
Print head		Konica Minolta 1024a / 6988H
Basic and max number of printheads		5--20
Maximum printheads number		20
Max row of printheads		3
Used ink		TechJet F2-1000
Colors range		4 Colorsx3=CMYKx3
		6 Colorsx3=CMYKLcLmx3
		4 Colorsx2 +White =CMYKx2+White
		6 Colorsx2+White =CMYKLcLmx2+white
		4 Colors +White+Varnish
		6 Colors +White+Varnish
Print mode	Print resolution	One row printhead printing speed	Two rows printhead printing speed	Color white color printing speed (Three-rows printhead)
Draft Mode	4Pass-726×720	81㎡/h	81㎡/h	40.5㎡/h
Standard mode	4Pass-726×720	42.42㎡/h	42.42㎡/h	21.21㎡/h
Quality Mode	6Pass-726×1080	28.4㎡/h	28.4㎡/h	14.2㎡/h
High quality mode	8Pass-726×1440	21.4㎡/h	21.4㎡/h	10.7㎡/h
Print Media	Media	Roll media
	Max Print size	Up to 3300mm(10.8F)
	Thickness	Up to 1.5mm
RIP Software		ONYX、PhotoPrint、Caldera（Optional）
Data interface		USB3.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Gross weight		2000kg
Dimension (W x D x H)		5630mm×1230mm×1530mm
Power requirement		AC220V±10%，≥32A，50/60HZ
Maximum power		7000W
Printable environment		Temperature 20-30 °C, humidity 40%-60%RH (non condensing)
Remark The above printing speed is the measured printing speed. The power consuption basicis on standby and normal print. *The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
