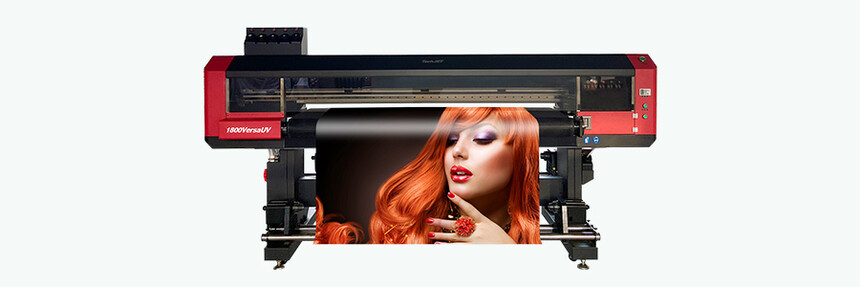

1800VersaUV Printer

Details
Specifications

RICOH G6 PrintHead MSRP：29,995.00 USD

•The nozzle flashing function avoids print head clogging caused by prolonged standby, and the jetting frequency is controllable by software.

•Controllable design of the vacuum area, according to the size of the media to controlling the vacuum area to ensure stable vacuum output.

•Fully automatic medium thickness detection function and automatic printing height control system.

•Intelligent lacking ink voice alarm, ensuring printing process safer and more reliable.

Model		1800VersaUV
Carriage moving approach		Belt
Print head		Ricoh G6
Basic and Max number of printheads		2--6
Maximum printheads number		6
Max Row of printheads		2
Used ink		TechJet RA-1000
Colors range		4 Colorsx2=CMYKx2
		6 Colorsx2=CMYKLcLmx2
		4 Colors +White=CMYK+White
		6 Colors+White=CMYKLcLm+white
Print mode	Print resolution	One row printhead printing speed	Two rows printhead printing speed	Color white color printing speed (Two-rows printheads)
Draft Mode	4Pass-720×600	37.2㎡/h	70.68㎡/h	23.56㎡/h
Standard mode	4Pass-720×600	20.5m2/h	36.9m2/h	14.43m2/h
Quality Mode	6Pass-720×900	14.35m2/h	26.6m2/h	9.92m2/h
High quality mode	8Pass-720×1200	10.86m2/h	20.47m2/h	7.7m2/h
Print Media	Max.width	Up to 1820mm（5.97F）
	Range	300-1810mm (0.98-5.94F）
	Thickness	Up to 2.5mm
	Max. diam of reel paper	Ф250mm
	Paper core	2 inches/3 inches
	Print margins	5mm on both sides
	Max. weight	80KG
RIP Software		ONYX、PhotoPrint、Caldera（Optional）
Data interface		USB2.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Gross weight		700KG
Dimension (W x D x H)		3010×900×1550mm
Power requirement		AC220V±10%，50/60HZ
Maximum power		3000W
Printable environment		Temperature 20-30 °C, humidity 40%-60%RH (non condensing)
Remark The above printing speed is the measured printing speed. The power consuption basicis on standby and normal print. *The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
