5300VersaUV Printer

  • Details
  • Specifications


Konica Minolta 1024a PrintHead                                                                                                  MSRP:149,995.00 USD

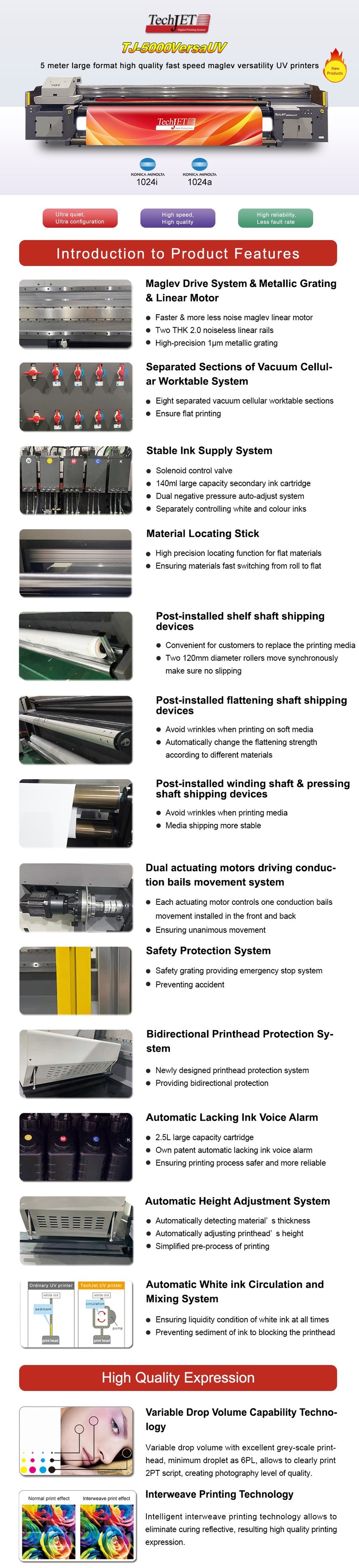

According to customers and marketing demand designed this UV printers, the following advantage was existed.

Over Wide Print Size

Extra wide printing size maximum up to 5300mm with endless length, meet the demand of special filed

and customers.


The convenience media loading and unloading, save the more the time when load roll media.

In mean time max up to 24 pcs printhead loaded the print speed obvious raise and available to colors

and colors white inks.


High-end component production produces stable machines of versatility series UV printers and

printing wide up to 5300mm, that is almost suitable to all the roll to roll media.

More Applications

Widely used in advertising production and other fields.

Higher Quality

Loading Konica Minolta 1024a printhead with special developed UV inks, efficiently raise print speed

and also quality.


Carriage moving approachLinear Motor
Print headKonica Minolta 1024a / 6988H
Basic and max number of printheads12--24
Maximum printheads number24
Max row of printheads4
Used inkTechJet F2-1000
Colors range4 Colorsx4=CMYKx4
6 Colorsx4=CMYKLcLmx4
4 Colorsx2 +Whitex2 =CMYKx2+Whitex2
6 Colorsx2+Whitex2 =CMYKLcLmx2+whitex2
4 Colorsx2 +White+Varnish
6 Colorsx2 +White+Varnish
Print modePrint resolutionOne row printhead printing speedTwo rows printhead printing speedThree rows printhead printing speedFour rows printhead printing speed
Draft Mode4Pass-726×72045㎡/h90㎡/h135㎡/h180㎡/h
Standard mode4Pass-726×72020.57㎡/h41.13㎡/h61.7㎡/h82.3㎡/h
Quality Mode6Pass-726×108013.80㎡/h27.60㎡/h41.4㎡/h55.2㎡/h
High quality mode8Pass-726×144010.31㎡/h20.63㎡/h30.94㎡/h41.24㎡/h
Print MediaMediaRoll mediaFlat media
Max Print sizeUp to 5300mmUp to Two 2450×1300mm
ThicknessUp to 1.5mmUp to 30mm
RIP SoftwareONYX、PhotoPrint、Caldera(Optional)
Data interfaceUSB3.0
Ink supply methodVacuum negative pressure, continuous ink supply
Curing MethodDual UV-LED Lampes
Gross weight5300KG
Dimension (W x D x H)8500mm×2100mm×1900mm
Front and back printing platform(optional accessories)5480mm×980mm×400mm
Power requirementAC220V±10%,≥32A,50/60HZ
Maximum power8000W
Printable environmentTemperature 20-30 °C, humidity 40%-60%RH (non condensing)
*The above printing speed is the measured printing speed.
*The power consuption basicis on standby and normal print.
*The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
